90-315mm HDPE Water Supply Pipe Production Line with Customization and Extruder Size

Name: 90315mm HDPE Water Supply Pipe Production Line with Customization and Extruder Size
Brand: Changyue
Price: 1 USD

Quality 90-315mm HDPE Water Supply Pipe Production Line with Customization and Extruder Size wholesale

Model NO. : SJ75/38

Customized : Customized

Condition : New

After-sales Service : Site Installation

Extruder Size : Sj 75/38

Pipe Diameter Range : 90-315 mm

Suitable Material : PE 80 / PE100

Main Motor Power : 160 Kw

Transport Package : Export Package

Specification : 20-110 mm

Trademark : CHANGYUE

Origin : Qingdao, China

HS Code : 84772090

Supply Ability : 300 Kg / H

Warranty : One Year

Product Type : PE Pipe

Screw No. : Single-screw

Automation : Automatic

Computerized : Computerized

Certification : CE, ISO9001:2008

Customization : Available | Customized Request

Place of Origin : Shandong, China

Brand Name : Changyue

Packaging Details : Export Film Packing / According To Customer

Delivery Time : 15 Days (1 - 1 Pieces) To Be Negotiated ( > 1 Pieces)

Contact Now

China HDPE water supply pipe production line 90-315mm

The PE pipe extrusion line is developed on based of European advanced technology. It is suitable for producing PE,PP,PERT pipes at high speed production. The production line has a high degree of automation, optimized screw structure, stable production efficiency and won good reputation both in domestic and oversea markets.For producing large diameter pipes, we can also provide two-layer,three-layer and multi-layer composite pipe extrusion line. It is the best alternative to replace the imported production line. Based on the market demand, We have developed and manufactured larger HDPE pipe extrusion line with diameter up to 1600mm.

Features:
1. New type screw with L/D 38:1. Capacity has been increased largely
2. The complete line adopts advanced PLC control system, realizing synchronization and full-automation
3. New type high torque gearbox realizes much more stable production
4. Vacuum calibration tank and cooling tank adopt automatic water temperature and water level control as well as special independent filters.

Main technical parameters

Model	Pipe rang	Extruder model	Main motor power /kw	Max.capacity kg
WR-63	φ16-63	SJ-60/38	110	350-400
WR-110	φ20-110	SJ-60/38	110	350-400
WR-160	φ40-160	SJ-60/38	110	350-400
WR-250	φ50-250	SJ-75/38	160	500-550
WR-400	φ160-450	SJ-90/38	220	700-800
WR-630	φ250-630	SJ-120/38	2355	1100-1200
WR-800	φ315-800	SJ-120/38	355	1100-1200
WR-1200	φ500-1200	SJ-150/38	450	1400-1500
WR-1600	φ710-1600	SJ-150/38	450	1400-1500

90-315mm HDPE Water Supply Pipe Production Line with Customization and Extruder Size

1. After the machines are finished, the seller will test all machines before shipment. If the buyer can not come to test the machine,
we will test the machines and send the sample to buyer.

2..After shipment, the seller will send one or two technicians to the buyer's factory to help the buyer install the machine and train
workers for buyer.

3. We will supply all electricity drawing, machine installation drawing.

4. When make shipment, we will put some spare electricity parts for free, like the barrel hearers, thermcouples, breakers, relays,
and other items which is easier broken.

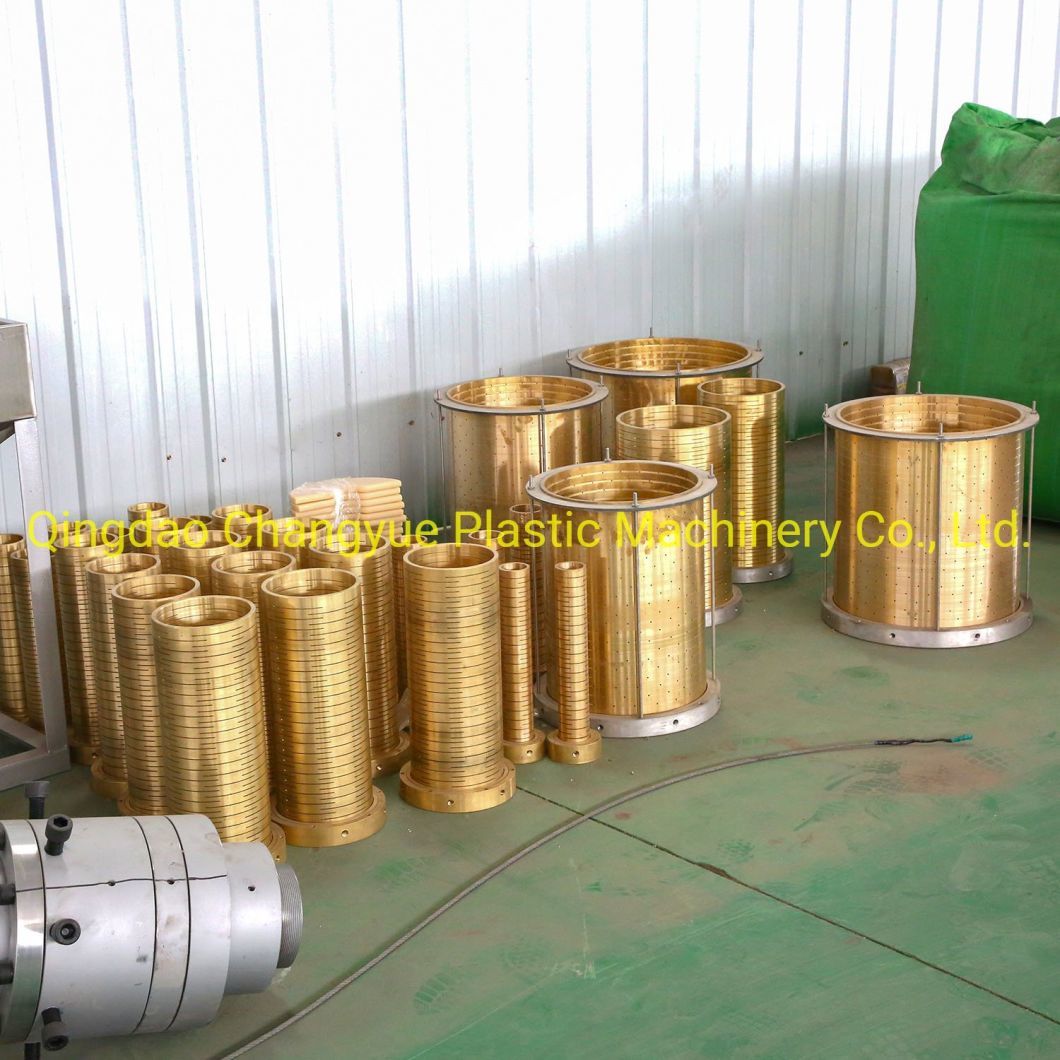

90-315mm HDPE Water Supply Pipe Production Line with Customization and Extruder Size Images
